Dell PowerEdge R740 Rack server

Description

Dell 2U R740 5218R/8G*1/600G SAS 10K*1/H330/DVD/750W*1/3.5-8 Overview

Dell PowerEdge R740 was designed to accelerate application performance leveraging accelerator cards and storage scalability. This model is the Dell PowerEdge R740 Server, including 2U Chassis, 5218R*1 Processor, 8G*1 Memory, 600G SAS 10K*1, H330, DVD, 750W*1 Power Supply, 8 ?? 3.5inch Hard Drive slots – Dell R740 server.

Quick Spec

Table 1 shows the quick spec.

Model	Dell PowerEdge R740 5218R/8G/600G SAS 10K/H330/DVD/750W/3.5-8 Server
Description	Dell PowerEdge R740 Server, 2U Chassis, 5218R*1 Processor, 8G*1 Memory, 600G SAS 10K*1, H330, DVD, 750W*1 Power Supply, 3.5inch Hard Drive-8
Processor	Intel Xeon Scalable Processors 5218R (20-core, 2.1GHz, 27.5 MB)
Memory	8GB
Hard Drive	600G SAS 10K
Hard Drive slots	8 LFF
Power Supply	750W

Product Details

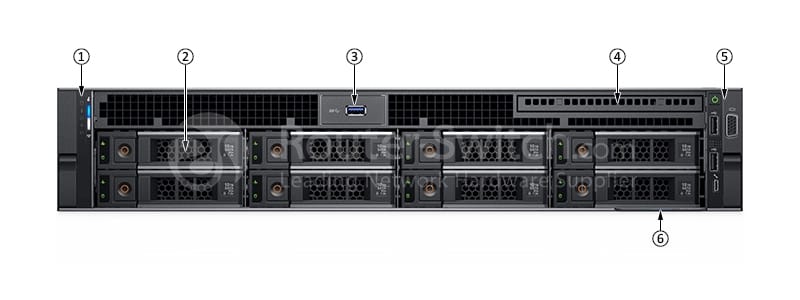

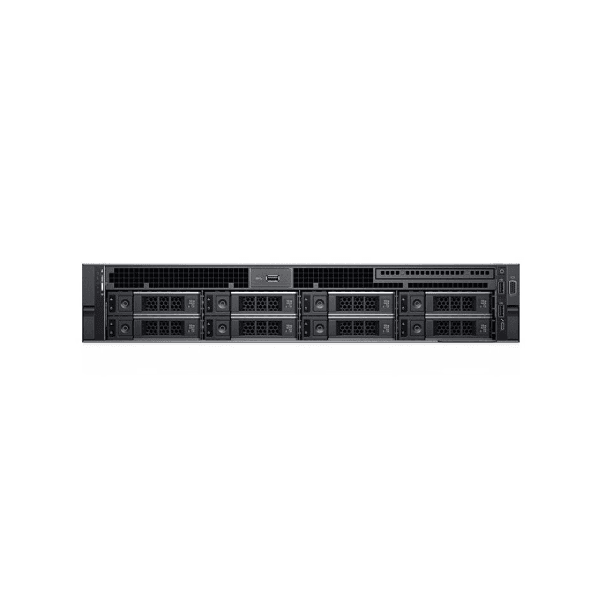

Figure 1 shows the front view of Dell R740 with 8LFF.

Note:

??	Left control panel	??	Optical drive (optional)
??	Drive slots	??	Right control panel
??	USB 3.0 port (optional)	??	Information tag

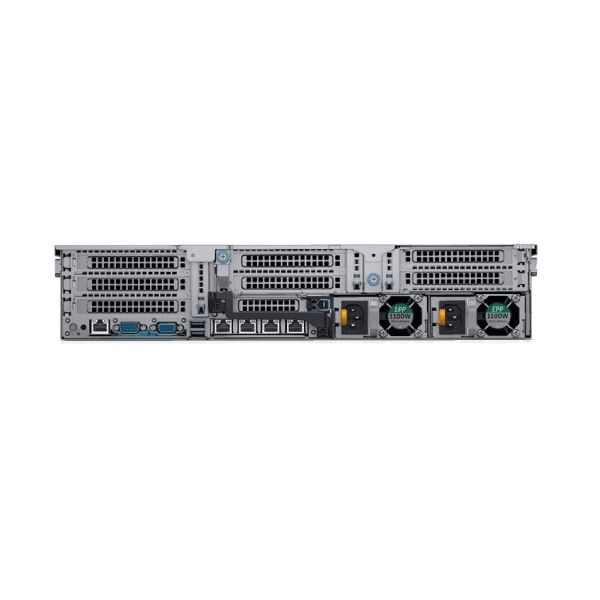

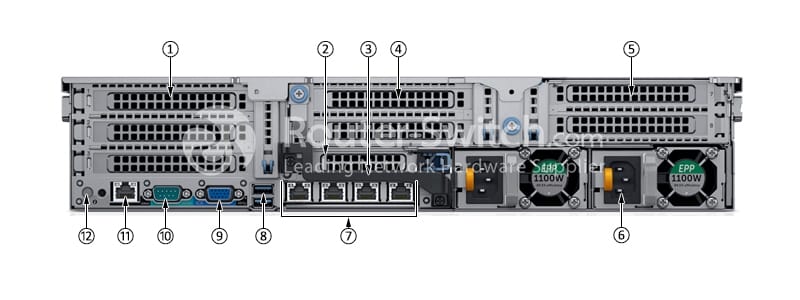

Figure 2 shows the rear view of Dell R740 with 8x PCIe slots available. *Another rear view will show 4x PCIe slots available with riser 2 and riser 3 blanks.

Note:

??	Full-height PCIe expansion card slot (3)	??	NIC ports
??	Half-height PCIe expansion card slot	??	USB port (2)
??	Rear handle	??	VGA port
??	Full-height PCIe expansion card slot (2)	??	Serial port
??	Full-height PCIe expansion card slot (2)		iDRAC9 dedicated port
??	Power supply unit (2)		System identification button
