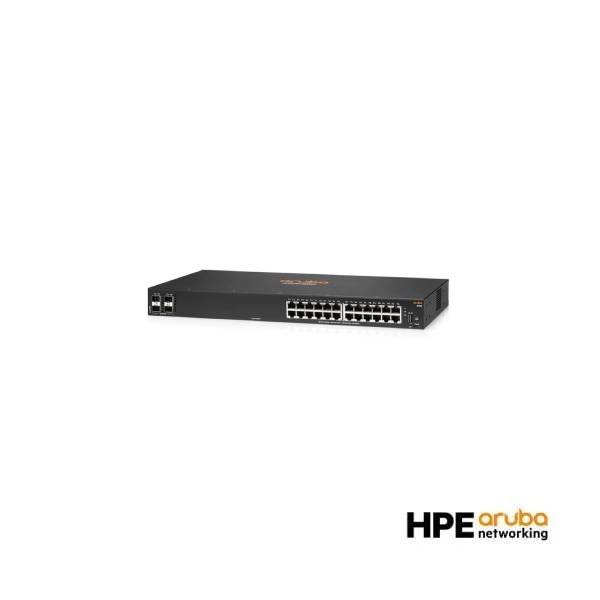

HPE Aruba JL678A Overview
The Aruba CX 6100 Switch Series is modern family of entry level access switches ideal for enterprise branch offices and SMB networks.
| Product Code | JL678A |
| Product type | Managed Switch |
| Ports | 24 x 10/100/1000BASE-T |
| Power supply | Internal |
Features
- ?Enterprise-class Layer 2 connectivity with support for ACLs, robust QoS and static routing
- ?Convenient built-in 1/10GbE uplinks and up to 370W of Class 4 PoE for support of IoT devices
- ?Compact and fanless 12 port model for quiet deployment
- ?Manage via single pane of glass with Aruba Central across wired, wireless, and WAN
- ?Automated configuration and verification with Aruba NetEdit
- ?Software defined ready with REST APIs
- ?Simplify adds, moves and changes with colorless ports
HPE Aruba JL678A Specification
JL678A specification |
|
| Product name | HPE Aruba 6100 24G Switch |
| Product type | Managed Switch |
| Connectivity | |
| Ports | 24x ports 10/100/1000BASE-T ports 4x 1G/10G SFP ports |
| Memory and processor? | Dual Core ARM Cortex A9 @ 1016 Mhz 4 GB DDR3, maximum, depending on model 16 GB eMMC |
| Latency? | 1 Gbps: 1.5 ??Sec , 10 Gbps: 1.8 ??Sec |
| Throughput? | 95.2 Mpps |
| Switching capacity? | 128 Gbps |
| Performance | |
| Stackable | No |
| PoE capability | 370W, maximum, depending on model |
| Input voltage? | 100-127 VAC / 200-240 VAC |
| Power consumption? | Max Power (w/o PoE): 33W |
| General | |
| Managed | Yes |
| Ventilation | Fan |
| Width | 17.4 in |
| Depth???? | 7.9 in |
| Height??? | 1.7 in |
| Weight | 2.6 kg |
| Physical properties | |
| Form factor | Rack-mount |
| Features | |
| Power supply | Internal |
